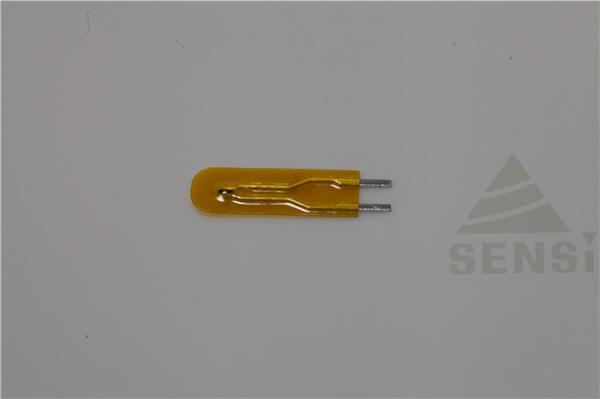

Thin Film Coated NTC Thermistor , Superior Electrical Insualtion , 10Kohm 3435 , 25mm , Fast Response
Product Applications
1. Heater, Warmer, Automobile air conditioners, Refrigerators, Freezers,
2. Water heaters, Gas boiler, Electric kettles, Wall-hung gas boiler, Water dispensers,
3. Toaster, Microwave oven, Air dryer, Roasting pan, Induction cooker, Electric hot plate,
4. Iron, Garment steamer, Hair straighten, Coffee maker, Coffee pot,
5. Rice cooker, Incubator temperature control, Egg boiler, etc.
Product Feature:
Insulating film seal / Fast response / Good stability
Application:
Computer / Printer / Household appliances
Specification Explain:
SJ MF 5A-6 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Epoxy coating type 5A-6 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| SJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 | ln still air ≥ 2.1mW/℃ | ln still air ≤ 8s | -40～+150℃ |
| SJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 |
| SJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 |
| SJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 |
| SJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 |
| SJMF5A-□-395/348-152□ | 1.5 | 3950/3480 |
| SJMF5A-□-397/418-104□ | 100 | 3970/4180 |
| SJMF5A-□-453-105□ | 1000 | 4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.
